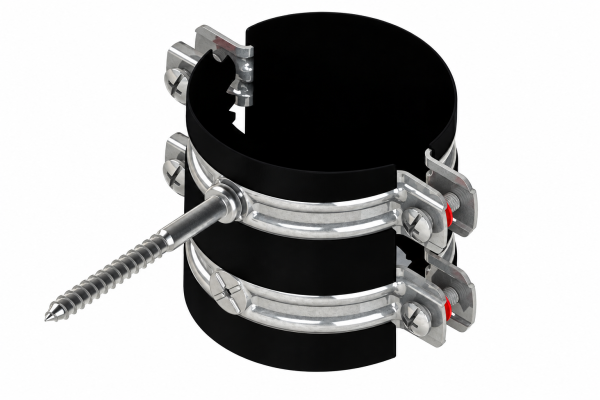

TRIFON SILENT HANDCUFFS
NORM
Product Description
APPLICATION AREA
| ÜRÜN KODU | BORU | SIKMA ARALIĞI | L | H | M | SxB | N | C |
|---|---|---|---|---|---|---|---|---|
| ÖLÇÜSÜ | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | |
| NSST50 | Ø50 | 49-51 | 105 | 105,5 | M5 | 1,2x20 | Ø7X70 | 38,5 |
| NSST75 | Ø75 | 70-76 | 134 | 118 | M6 | 1,5x25 | Ø7X70 | 39,5 |
| NSST110 | Ø110 | 106-114 | 170 | 136 | M6 | 1,5x25 | Ø7X70 | 39,5 |
UPPER CLAMP
| ÜRÜN KODU | BORU | SIKMA ARALIĞI | L | H | M | SxB | N | C |
|---|---|---|---|---|---|---|---|---|
| ÖLÇÜSÜ | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | |
| NSSU50 | Ø50 | 49-51 | 105 | - | M5 | 1,2x20 | Ø7X70 | 37 |
| NSSU75 | Ø75 | 70-76 | 134 | - | M6 | 1,5x25 | Ø7X70 | 38 |
| NSSU110 | Ø110 | 106-114 | 170 | - | M6 | 1,5x25 | Ø7X70 | 38 |
About The Brand
NORM
For Norm Bağlantı products, the manufacturing and sales processes are subject to continuous monitoring in accordance with FM, UL, ISO 9001:2008, TSEK, TÜV and GOST guidelines. By adopting a total quality approach across all stages—including raw material procurement, product delivery and customer relations—the products offer superior characteristics that exceed the values specified by the relevant standards.
