Spigot Reducer SDR11

NTG

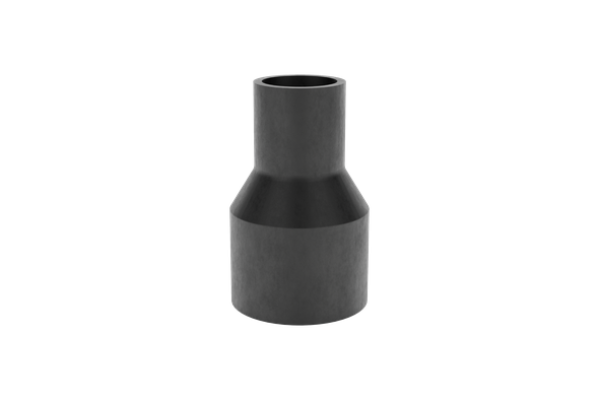

Spigot Reducer SDR11

Product Code: 001 117 0080 0026

Brand: NTG

Category: Fittings

Spigot Injection 16 Bar Water 10 Bar Gas

Get Quote WhatsApp Call Us

Product Options

Product Description

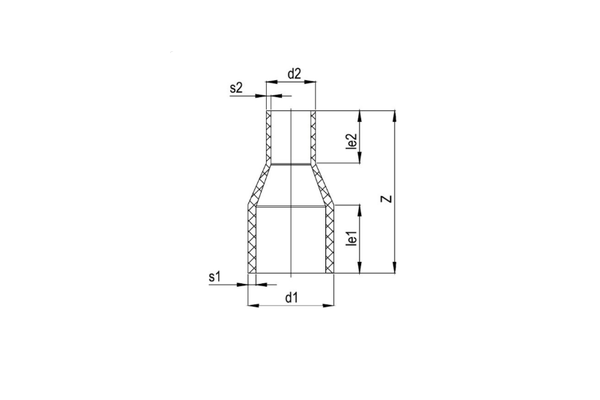

Article No	d1 mm	d2 mm	Z mm	le1 mm	le2 mm	s1 mm	s2 mm	Weight kg	Box Pcs	Compatibility SDR
0026	25	20	120	55	52	3,0	3,0	0,030	100	11
0033	32	25	130	56	52	3,0	3,0	0,030	50	11
0034	32	20	115	57	43	3,0	3,0	0,030	50	11
0041	40	32	130	56	51	3,7	3,0	0,050	50	11
0042	40	25	130	56	51	3,7	3,0	0,040	50	11
0051	50	40	140	63	57	4,6	3,7	0,080	40	11
0052	50	32	140	63	53	4,6	3,0	0,070	40	11
0053	50	25	140	63	52	4,6	3,0	0,070	40	11
0064	63	50	150	67	63	5,8	4,6	0,140	20	11
0065	63	40	150	67	57	5,8	3,7	0,120	20	11
0066	63	32	150	67	49	5,8	3,0	0,110	20	11
0067	63	25	143	67	43	5,8	3,0	0,110	20	11
0076	75	63	175	74	67	6,8	5,8	0,210	40	11
0077	75	50	175	74	59	6,8	4,6	0,190	40	11
0078	75	40	170	70	58	6,8	3,7	0,170	40	11
0079	75	32	170	74	53	6,8	3,0	0,170	40	11
0091	90	75	200	83	74	8,2	6,8	0,390	36	11
0092	90	63	196	83	72	8,2	5,8	0,330	36	11
0093	90	50	190	83	59	8,2	4,6	0,300	36	11
0111	110	90	213	91	83	10,0	8,2	0,600	30	11
0112	110	75	218	87	74	10,0	6,8	0,506	30	11
0113	110	63	210	87	69	10,0	5,8	0,500	30	11

001 117 0080 0026 25x20 Spigot Reducer

d1	d2	Z	le1	le2	s1	s2	Weight	Box	Compatibility
mm	mm	mm	mm	mm	mm	mm	kg	Pcs	SDR
25	20	120	55	52	3,0	3,0	0,030	100	11

001 117 0080 0033 32x25 Spigot Reducer

d1	d2	Z	le1	le2	s1	s2	Weight	Box	Compatibility
mm	mm	mm	mm	mm	mm	mm	kg	Pcs	SDR
32	25	130	56	52	3,0	3,0	0,030	50	11

001 117 0080 0034 32x20 Spigot Reducer

d1	d2	Z	le1	le2	s1	s2	Weight	Box	Compatibility
mm	mm	mm	mm	mm	mm	mm	kg	Pcs	SDR
32	20	115	57	43	3,0	3,0	0,030	50	11

001 117 0080 0041 40x32 Spigot Reducer

d1	d2	Z	le1	le2	s1	s2	Weight	Box	Compatibility
mm	mm	mm	mm	mm	mm	mm	kg	Pcs	SDR
40	32	130	56	51	3,7	3,0	0,050	50	11

001 117 0080 0042 40x25 Spigot Reducer

d1	d2	Z	le1	le2	s1	s2	Weight	Box	Compatibility
mm	mm	mm	mm	mm	mm	mm	kg	Pcs	SDR
40	25	130	56	51	3,7	3,0	0,040	50	11

001 117 0080 0051 50x40 Spigot Reducer

d1	d2	Z	le1	le2	s1	s2	Weight	Box	Compatibility
mm	mm	mm	mm	mm	mm	mm	kg	Pcs	SDR
50	40	140	63	57	4,6	3,7	0,080	40	11

001 117 0080 0052 50x32 Spigot Reducer

d1	d2	Z	le1	le2	s1	s2	Weight	Box	Compatibility
mm	mm	mm	mm	mm	mm	mm	kg	Pcs	SDR
50	32	140	63	53	4,6	3,0	0,070	40	11

001 117 0080 0053 50x25 Spigot Reducer

d1	d2	Z	le1	le2	s1	s2	Weight	Box	Compatibility
mm	mm	mm	mm	mm	mm	mm	kg	Pcs	SDR
50	25	140	63	52	4,6	3,0	0,070	40	11

001 117 0080 0064 63x50 Spigot Reducer

d1	d2	Z	le1	le2	s1	s2	Weight	Box	Compatibility
mm	mm	mm	mm	mm	mm	mm	kg	Pcs	SDR
63	50	150	67	63	5,8	4,6	0,140	20	11

001 117 0080 0065 63x40 Spigot Reducer

d1	d2	Z	le1	le2	s1	s2	Weight	Box	Compatibility
mm	mm	mm	mm	mm	mm	mm	kg	Pcs	SDR
63	40	150	67	57	5,8	3,7	0,120	20	11

001 117 0080 0066 63x32 Spigot Reducer

d1	d2	Z	le1	le2	s1	s2	Weight	Box	Compatibility
mm	mm	mm	mm	mm	mm	mm	kg	Pcs	SDR
63	32	150	67	49	5,8	3,0	0,110	20	11

001 117 0080 0067 63x25 Spigot Reducer

d1	d2	Z	le1	le2	s1	s2	Weight	Box	Compatibility
mm	mm	mm	mm	mm	mm	mm	kg	Pcs	SDR
63	25	143	67	43	5,8	3,0	0,110	20	11

001 117 0080 0076 75x63 Spigot Reducer

d1	d2	Z	le1	le2	s1	s2	Weight	Box	Compatibility
mm	mm	mm	mm	mm	mm	mm	kg	Pcs	SDR
75	63	175	74	67	6,8	5,8	0,210	40	11

001 117 0080 0077 75x50 Spigot Reducer

d1	d2	Z	le1	le2	s1	s2	Weight	Box	Compatibility
mm	mm	mm	mm	mm	mm	mm	kg	Pcs	SDR
75	50	175	74	59	6,8	4,6	0,190	40	11

001 117 0080 0078 75x40 Spigot Reducer

d1	d2	Z	le1	le2	s1	s2	Weight	Box	Compatibility
mm	mm	mm	mm	mm	mm	mm	kg	Pcs	SDR
75	40	170	70	58	6,8	3,7	0,170	40	11

001 117 0080 0079 75x32 Spigot Reducer

d1	d2	Z	le1	le2	s1	s2	Weight	Box	Compatibility
mm	mm	mm	mm	mm	mm	mm	kg	Pcs	SDR
75	32	170	74	53	6,8	3,0	0,170	40	11

001 117 0080 0091 90x75 Spigot Reducer

d1	d2	Z	le1	le2	s1	s2	Weight	Box	Compatibility
mm	mm	mm	mm	mm	mm	mm	kg	Pcs	SDR
90	75	200	83	74	8,2	6,8	0,390	36	11

001 117 0080 0092 90x63 Spigot Reducer

d1	d2	Z	le1	le2	s1	s2	Weight	Box	Compatibility
mm	mm	mm	mm	mm	mm	mm	kg	Pcs	SDR
90	63	196	83	72	8,2	5,8	0,330	36	11

001 117 0080 0093 90x50 Spigot Reducer

d1	d2	Z	le1	le2	s1	s2	Weight	Box	Compatibility
mm	mm	mm	mm	mm	mm	mm	kg	Pcs	SDR
90	50	190	83	59	8,2	4,6	0,300	36	11

001 117 0080 0111 110x90 Spigot Reducer

d1	d2	Z	le1	le2	s1	s2	Weight	Box	Compatibility
mm	mm	mm	mm	mm	mm	mm	kg	Pcs	SDR
110	90	213	91	83	10,0	8,2	0,600	30	11

001 117 0080 0112 110x75 Spigot Reducer

d1	d2	Z	le1	le2	s1	s2	Weight	Box	Compatibility
mm	mm	mm	mm	mm	mm	mm	kg	Pcs	SDR
110	75	218	87	74	10,0	6,8	0,506	30	11

001 117 0080 0113 110x63 Spigot Reducer

d1	d2	Z	le1	le2	s1	s2	Weight	Box	Compatibility
mm	mm	mm	mm	mm	mm	mm	kg	Pcs	SDR
110	63	210	87	69	10,0	5,8	0,500	30	11

About The Brand

NTG

NTG Plastik is recognized for its high technology and flawless leakproof standards in the production of polyethylene pipe fittings. With Ansu Altyapi assurance, we rapidly dispatch all NTG electrofusion fittings, elbows, tees, and valves needed in your projects to your construction sites from our high stock reserves.
