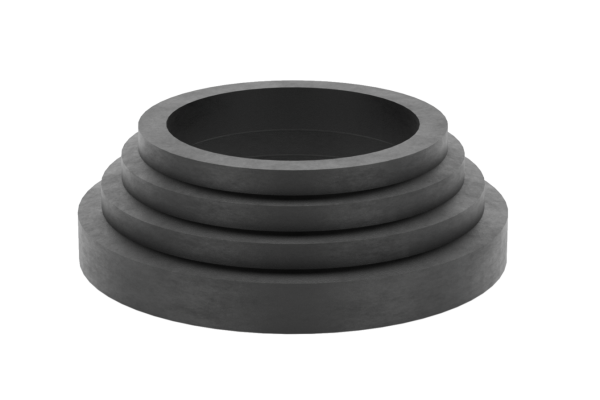

Spigot Multi-Stage Reducer SDR11
NTG
Product Description

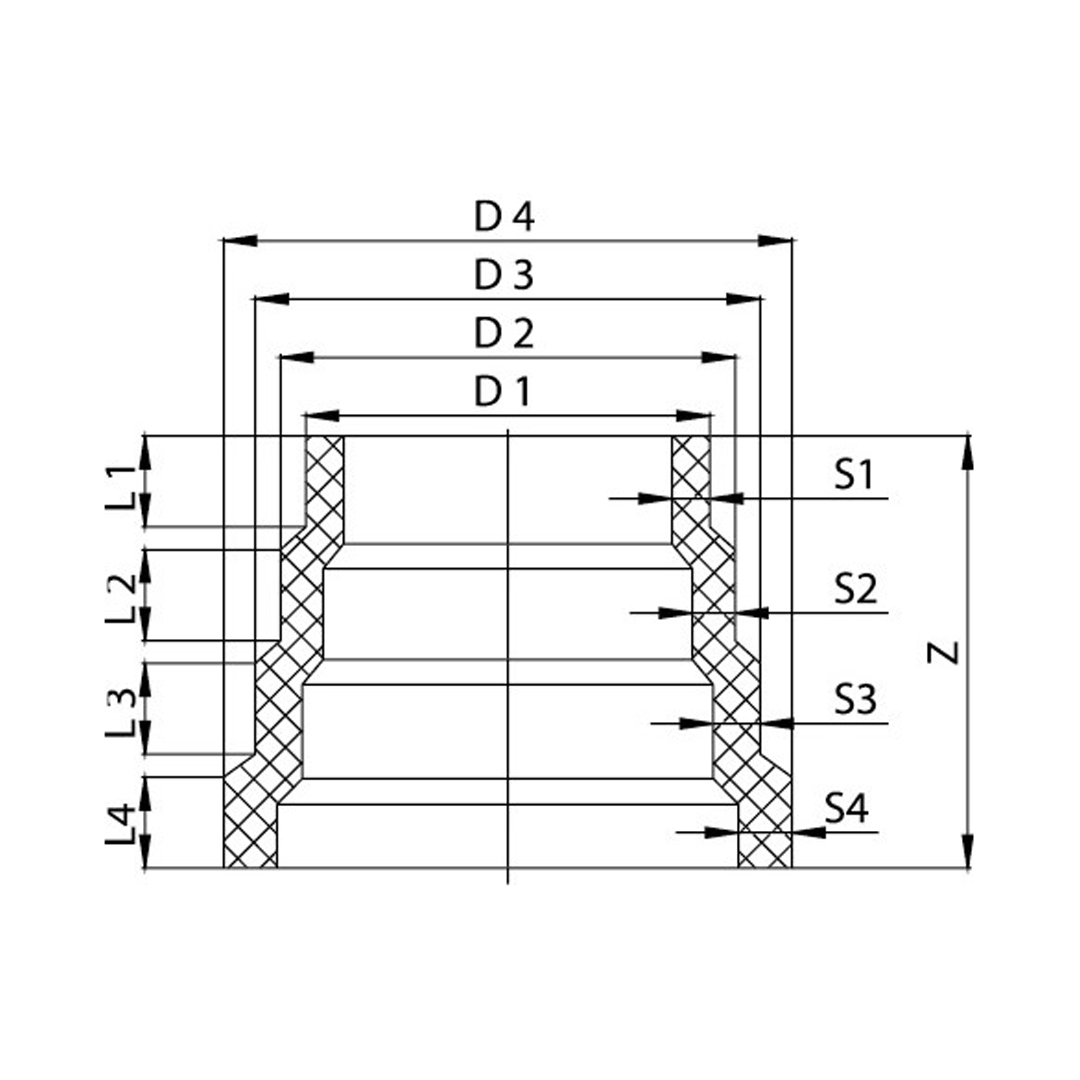

| Article No | D4 mm | D3 mm | D2 mm | D1 mm | Z mm | Weight kg | Box Pcs | Compatibility SDR |
|---|---|---|---|---|---|---|---|---|
| 0228 | 225 | 200 | 180 | 160 | 171,0 | 1,730 | 1 | 11 |
| 0318 | 315 | 280 | 250 | 225 | 171,0 | 3,800 | 1 | 11 |
| 0453 | 450 | 400 | 355 | 315 | 176,0 | 8,515 | 1 | 11 |
| 0633 | 630 | 560 | 500 | 450 | 200,0 | 19,740 | 1 | 11 |
001 117 1081 0228
225-160 Multi-Stage Reducer
| D4 | D3 | D2 | D1 | Z | Weight | Box | Compatibility |
|---|---|---|---|---|---|---|---|
| mm | mm | mm | mm | mm | kg | Pcs | SDR |
| 225 | 200 | 180 | 160 | 171,0 | 1,730 | 1 | 11 |
001 117 1081 0318
315-225 Multi-Stage Reducer
| D4 | D3 | D2 | D1 | Z | Weight | Box | Compatibility |
|---|---|---|---|---|---|---|---|
| mm | mm | mm | mm | mm | kg | Pcs | SDR |
| 315 | 280 | 250 | 225 | 171,0 | 3,800 | 1 | 11 |
001 117 1081 0453
450-315 Multi-Stage Reducer
| D4 | D3 | D2 | D1 | Z | Weight | Box | Compatibility |
|---|---|---|---|---|---|---|---|
| mm | mm | mm | mm | mm | kg | Pcs | SDR |
| 450 | 400 | 355 | 315 | 176,0 | 8,515 | 1 | 11 |
001 117 1081 0633
630-450 Multi-Stage Reducer
| D4 | D3 | D2 | D1 | Z | Weight | Box | Compatibility |
|---|---|---|---|---|---|---|---|
| mm | mm | mm | mm | mm | kg | Pcs | SDR |
| 630 | 560 | 500 | 450 | 200,0 | 19,740 | 1 | 11 |
About The Brand
NTG
NTG Plastik is recognized for its high technology and flawless leakproof standards in the production of polyethylene pipe fittings. With Ansu Altyapi assurance, we rapidly dispatch all NTG electrofusion fittings, elbows, tees, and valves needed in your projects to your construction sites from our high stock reserves.
