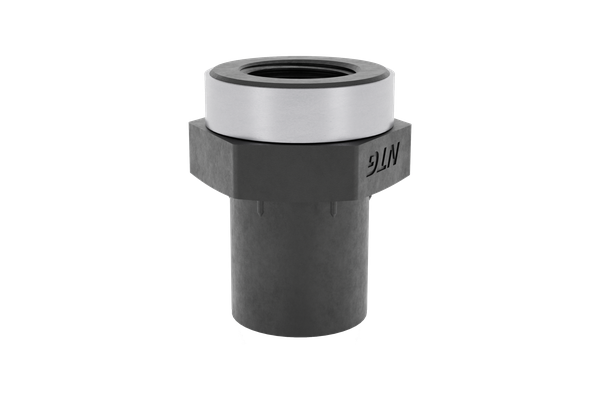

PE Transition Adaptor Female Thread
NTG
Product Description

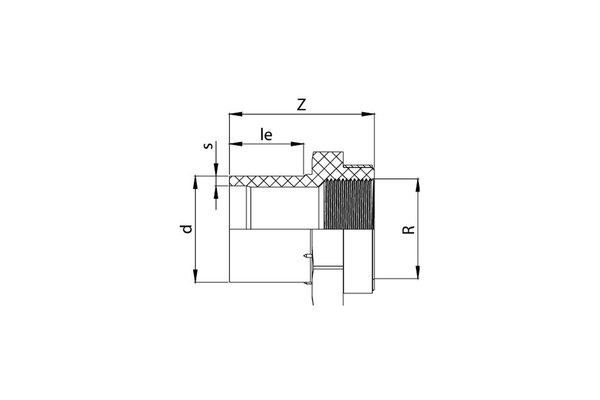

| Article No | d mm | R inch | le mm | Z mm | s mm | Weight kg | Box Pcs |
|---|---|---|---|---|---|---|---|
| 0020 | 20 | ½" | 34 | 59 | 3,0 | 0,025 | 100 |
| 0025 | 25 | ¾" | 34 | 61 | 3,0 | 0,033 | 100 |
| 0032 | 32 | 1" | 37 | 68 | 3,0 | 0,060 | 90 |
| 4001 | 40 | 1" | 41 | 72 | 3,7 | 0,110 | 40 |
| 0040 | 40 | 1¼" | 42 | 79 | 3,7 | 0,100 | 40 |
| 0050 | 50 | 1½" | 49 | 86 | 4,6 | 0,135 | 25 |
| 6301 | 63 | 1½" | 49 | 86 | 5,8 | 0,170 | 60 |
| 0063 | 63 | 2" | 49 | 85 | 5,8 | 0,170 | 60 |
001 117 6211 0020
20x½" PE Female Thread
| d | R | le | Z | s | Weight | Box |
|---|---|---|---|---|---|---|
| mm | inch | mm | mm | mm | kg | Pcs |
| 20 | ½" | 34 | 59 | 3,0 | 0,025 | 100 |
001 117 6211 0025
25x¾" PE Female Thread
| d | R | le | Z | s | Weight | Box |
|---|---|---|---|---|---|---|
| mm | inch | mm | mm | mm | kg | Pcs |
| 25 | ¾" | 34 | 61 | 3,0 | 0,033 | 100 |
001 117 6211 0032
32x1" PE Female Thread
| d | R | le | Z | s | Weight | Box |
|---|---|---|---|---|---|---|
| mm | inch | mm | mm | mm | kg | Pcs |
| 32 | 1" | 37 | 68 | 3,0 | 0,060 | 90 |
001 117 6211 4001
40x1" PE Female Thread
| d | R | le | Z | s | Weight | Box |
|---|---|---|---|---|---|---|
| mm | inch | mm | mm | mm | kg | Pcs |
| 40 | 1" | 41 | 72 | 3,7 | 0,110 | 40 |
001 117 6211 0040
40x1¼" PE Female Thread
| d | R | le | Z | s | Weight | Box |
|---|---|---|---|---|---|---|
| mm | inch | mm | mm | mm | kg | Pcs |
| 40 | 1¼" | 42 | 79 | 3,7 | 0,100 | 40 |
001 117 6211 0050
50x1½" PE Female Thread
| d | R | le | Z | s | Weight | Box |
|---|---|---|---|---|---|---|
| mm | inch | mm | mm | mm | kg | Pcs |
| 50 | 1½" | 49 | 86 | 4,6 | 0,135 | 25 |
001 117 6211 6301
63x1½" PE Female Thread
| d | R | le | Z | s | Weight | Box |
|---|---|---|---|---|---|---|
| mm | inch | mm | mm | mm | kg | Pcs |
| 63 | 1½" | 49 | 86 | 5,8 | 0,170 | 60 |
001 117 6211 0063
63x2" PE Female Thread
| d | R | le | Z | s | Weight | Box |
|---|---|---|---|---|---|---|
| mm | inch | mm | mm | mm | kg | Pcs |
| 63 | 2" | 49 | 85 | 5,8 | 0,170 | 60 |
About The Brand
NTG
NTG Plastik is recognized for its high technology and flawless leakproof standards in the production of polyethylene pipe fittings. With Ansu Altyapi assurance, we rapidly dispatch all NTG electrofusion fittings, elbows, tees, and valves needed in your projects to your construction sites from our high stock reserves.
