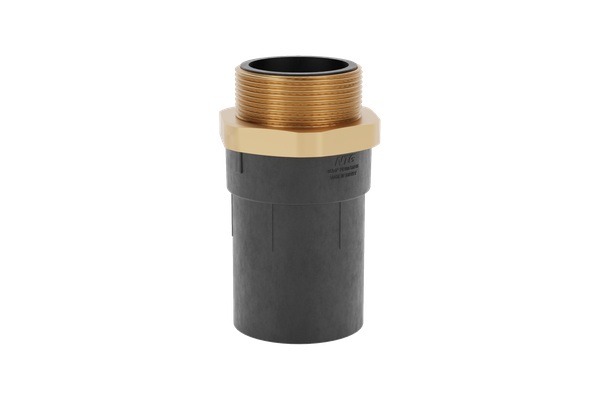

PE-Brass (MS58) Male Thread
NTG
Product Description

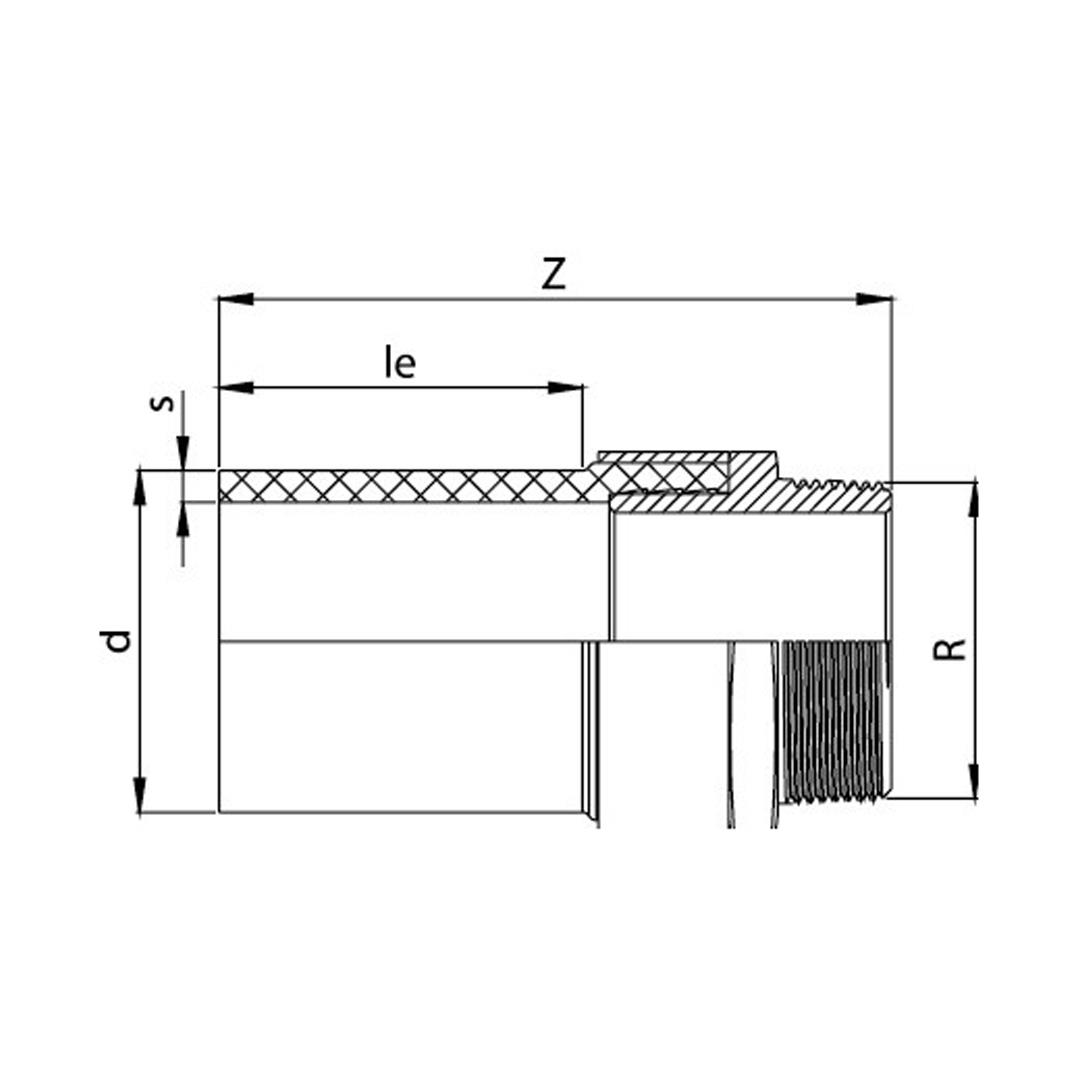

| Article No | d mm | R inch | le mm | Z mm | s mm | Weight kg | Box Pcs |
|---|---|---|---|---|---|---|---|
| 0020 | 20 | ½" | 43 | 76 | 3,0 | 0,060 | 100 |
| 0025 | 25 | ¾" | 43 | 80 | 3,0 | 0,100 | 100 |
| 3201 | 32 | ¾" | 46 | 83 | 3,0 | 0,130 | 50 |
| 0032 | 32 | 1" | 46 | 86 | 3,0 | 0,140 | 50 |
| 0040 | 40 | 1¼" | 52 | 102 | 3,7 | 0,255 | 25 |
| 0050 | 50 | 1½" | 59 | 111 | 4,6 | 0,370 | 32 |
| 0063 | 63 | 2" | 67 | 125 | 5,8 | 0,560 | 10 |
| 0075 | 75 | 2½" | 74 | 146 | 6,8 | 0,980 | 5 |
| 0090 | 90 | 3" | 83 | 168 | 8,2 | 1,410 | 4 |
| 0110 | 110 | 4" | 87 | 179 | 10,0 | 2,080 | 2 |
| 0125 | 125 | 4" | 92 | 186 | 11,4 | 2,230 | 2 |
001 117 6205 0020
20x½" Brass Male Thread
| d | R | le | Z | s | Weight | Box |
|---|---|---|---|---|---|---|
| mm | inch | mm | mm | mm | kg | Pcs |
| 20 | ½" | 43 | 76 | 3,0 | 0,060 | 100 |
001 117 6205 0025
25x¾" Brass Male Thread
| d | R | le | Z | s | Weight | Box |
|---|---|---|---|---|---|---|
| mm | inch | mm | mm | mm | kg | Pcs |
| 25 | ¾" | 43 | 80 | 3,0 | 0,100 | 100 |
001 117 6205 3201
32x¾" Brass Male Thread
| d | R | le | Z | s | Weight | Box |
|---|---|---|---|---|---|---|
| mm | inch | mm | mm | mm | kg | Pcs |
| 32 | ¾" | 46 | 83 | 3,0 | 0,130 | 50 |
001 117 6205 0032
32x1" Brass Male Thread
| d | R | le | Z | s | Weight | Box |
|---|---|---|---|---|---|---|
| mm | inch | mm | mm | mm | kg | Pcs |
| 32 | 1" | 46 | 86 | 3,0 | 0,140 | 50 |
001 117 6205 0040
40x1¼" Brass Male Thread
| d | R | le | Z | s | Weight | Box |
|---|---|---|---|---|---|---|
| mm | inch | mm | mm | mm | kg | Pcs |
| 40 | 1¼" | 52 | 102 | 3,7 | 0,255 | 25 |
001 117 6205 0050
50x1½" Brass Male Thread
| d | R | le | Z | s | Weight | Box |
|---|---|---|---|---|---|---|
| mm | inch | mm | mm | mm | kg | Pcs |
| 50 | 1½" | 59 | 111 | 4,6 | 0,370 | 32 |
001 117 6205 0063
63x2" Brass Male Thread
| d | R | le | Z | s | Weight | Box |
|---|---|---|---|---|---|---|
| mm | inch | mm | mm | mm | kg | Pcs |
| 63 | 2" | 67 | 125 | 5,8 | 0,560 | 10 |
001 117 6200 0075
75x2½" Brass Male Thread
| d | R | le | Z | s | Weight | Box |
|---|---|---|---|---|---|---|
| mm | inch | mm | mm | mm | kg | Pcs |
| 75 | 2½" | 74 | 146 | 6,8 | 0,980 | 5 |
001 117 6200 0090
90x3" Brass Male Thread
| d | R | le | Z | s | Weight | Box |
|---|---|---|---|---|---|---|
| mm | inch | mm | mm | mm | kg | Pcs |
| 90 | 3" | 83 | 168 | 8,2 | 1,410 | 4 |
001 117 6200 0110
110x4" Brass Male Thread
| d | R | le | Z | s | Weight | Box |
|---|---|---|---|---|---|---|
| mm | inch | mm | mm | mm | kg | Pcs |
| 110 | 4" | 87 | 179 | 10,0 | 2,080 | 2 |
001 117 6200 0125
125x4" Brass Male Thread
| d | R | le | Z | s | Weight | Box |
|---|---|---|---|---|---|---|
| mm | inch | mm | mm | mm | kg | Pcs |
| 125 | 4" | 92 | 186 | 11,4 | 2,230 | 2 |
About The Brand
NTG
NTG Plastik is recognized for its high technology and flawless leakproof standards in the production of polyethylene pipe fittings. With Ansu Altyapi assurance, we rapidly dispatch all NTG electrofusion fittings, elbows, tees, and valves needed in your projects to your construction sites from our high stock reserves.
