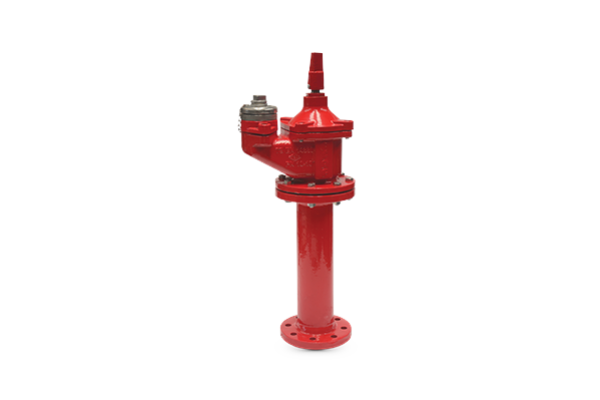

FAF 7150 Hydrant– Underground

Features

• The body of hydrant is underground and the cover is overground. It is vertical to ground and has one outlet.
• It is designed and manufactured according TS EN 14384 standarts.
• It can be engaged easily and quickly. It is opened and closed due to hydrant switch by rotating the control shaft, which is at the head of hydrant.
• Remaining water, which is in the hydrant after usage, can be released by check valve.
• The hydrant is protected in case of freezing.
• Can be manufactured at different lengths.
• Remaining water which is in the hydrant after usage can be released by check valve.
• Light-weight, inexpensive hydrant tools available.
• All body and cover plate components are coated with fusion bonded powder epoxy
• Secured by the stainless steel safety stem coupling, and hydrant prevent traffic damage by pulling out if hit by a vehicle preventing damage to the main valve and stem.
• Easily removable main valve from either the bonnet or groundedline flange.
• Hydrants are designed for high performance and easy to install,maintain and repair.

Temperature

• +130 °C

Scope of Application

• Fire protection
