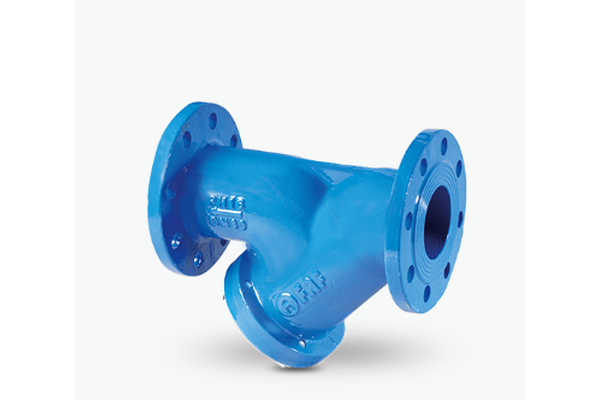

FAF 2500 Straıner Y-Type

Features

• Y-Type strainer is used for filtering the mass particles inside the flow through the steel filter chamber situated in the body.

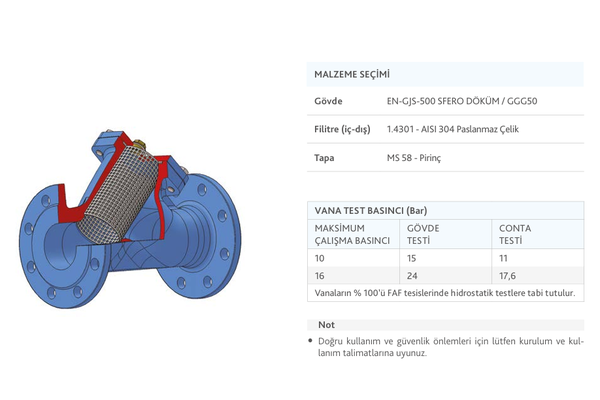

• Straining is accomplished with an internal mesh lined straining element, the size of which should be determined based on the size of the smallest particle to be removed. Recommended for installation upstream of control valves.
• Double filter Construction avaids water hammer effects.
• By removing the cover placed on the body, detailed cleaning can be performed or filter can be replaced. Quick removal of lid for maintenance.
• The hole diameters on the filters are determined in order to have a minimum effect on the head loss and flow rate.
• According to request, the hole diameters of the filters can be manufactured in different dimensions.
• Inner and outer surfaces of the Y-type strainer are coated with fusion boded powder epoxy (FBE) optionally with industrial epoxy.
• DN 15-DN 200 Filter size: 20 Mesh.
• DN 250- DN 400 Filter size: 40 Mesh.
• Filter mesh size can be changed according to request.
• Plug MS58 BRASS.
• Stock piled for quick delivery.

Temperature

• +200 °C

Scope of Application

• Chamber installation
• Installation in plants
• Pipelines
• Water treatment plants
• Pumping stations
• Tanks, reservoirs
• Seawater applications
• Power plants (cooling water pipelines)
• Industry
