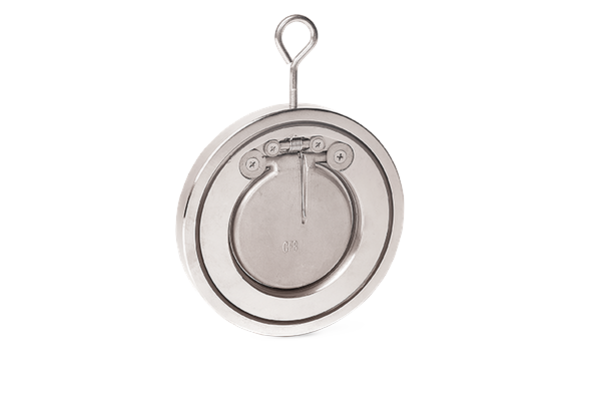

FAF 2300 Wafer Swıng Check Valve

Features

• The disc hinged on the body is placed within the flow section.
• With the start of movement at defined flow direction on the system, the disc leaves the flow section by turning in its axis and allows the flow pass.
• When the flow stops, the disc sits on the EPDM sealing rings placed on the body through disc spring force and maintains %100 tight sealing.
• Deigned to maintain the minimum head loss on the pipeline.
• Through its short installation length and eye screw (hook), easy to install between two flanges.
• Due in part to their oversized, heavier discs, typical full-sized swing check valves only fully open at an average flow rate of 11 ft/s. When activated at a lower flow rate, these valves loose true controllability and do not fully open.
• A partially open disc creates an obstruction that produces a higher pressure drop and fluttering of the valve disc – disturbing the flow and increasing the chance of water hammer.
• FAF2300 is suitable to eliminate these problems. It has been engineered to accelerate line media through the valve and achieve a virtually unobstructed full opening in low pressure.
• Constructed with stainless steel swing.
• Body can be made of galvanized carbon steel (FAF2330) or stainless steel (FAF2300). Disc is made of 1.4301/AISI 304 stainless steel for both types.
• Has stainless steel body, disc and spring.
• Can be installed in horizontal or vertical position
• No maintenance needed.
• Effective for preventing minor leakage.

Temperature

• +130 °C

Scope of Application

• Steam
• Hot & cold water
• Power & heat engineering
• Pressurized Air
• Industrial technologies
• Fluids without acidity or alkalinity properties
