EF Reducer SDR11

NTG

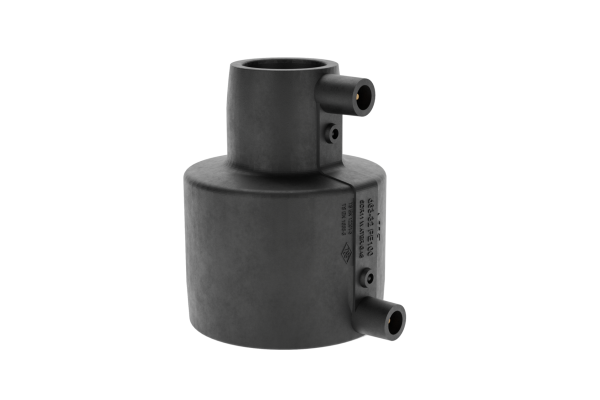

EF Reducer SDR11

Brand: NTG

Category: Fittings

PE100 Injection 4mm connection pin SDR11: 16 bar water – 10 bar gas

Get Quote WhatsApp Call Us

Product Options

Product Description

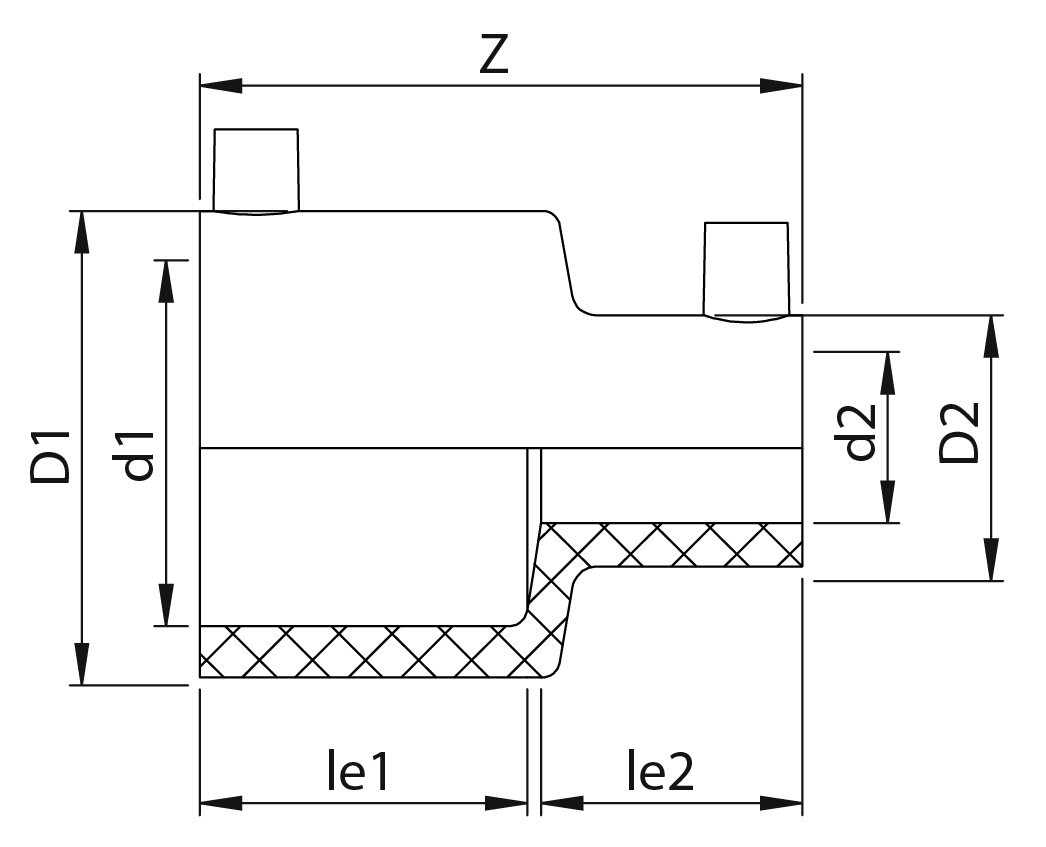

d1 mm	d2 mm	D1 mm	D2 mm	Z mm	le1 mm	le2 mm	Article No Ürün Kodu	Weight kg	Compatibility SDR	Box Pcs
25	20	34	29	77	38,5	36,5	0026	0,041	9..11	75
32	25	45	37	85	48	33	0033	0,067	9..11	75
32	20	44	32	85	48	32	0034	0,062	9..11	75
40	32	53	45,5	91	46	41	0041	0,084	9..11	80
50	40	62	53	124	61	57	0051	0,130	9..11	80
50	32	63	45	126	67	53	0052	0,134	9..11	80
63	50	81	68	117	62	49	0064	0,212	9..11	60
63	40	80	54	102	52	45	0065	0,168	9..11	60
63	32	80	45	102	52	42	0066	0,162	9..11	60
75	63	97	81	125	62	56	0076	0,314	11..17	24
90	63	114	80	124	61	52	0092	0,374	11..17	35
110	90	140	116	160	83	69	0111	0,780	11..17	20
110	63	139	83	157	71	56	0113	0,642	11..17	24
125	90	155	116	160	85	67	0127	0,912	11..17	12
125	63	156	83	156	75	67	0129	0,796	11..17	12
160	110	199	141	191	96	81	0163	1,812	11..17	6
160	90	199	118	195	99	75	0164	1,768	11..17	6
180	125	220	157	224	116	91	0183	2,256	11..17	4

101 117 2080 0026 25x20 EF Reducer

d1	d2	D1	D2	Z	le1	le2	Weight	Box	Compatibility
mm	mm	mm	mm	mm	mm	mm	kg	Pcs	SDR
25	20	34	29	77	38,5	36,5	0,041	75	9..11

101 117 2080 0033 32x25 EF Reducer

d1	d2	D1	D2	Z	le1	le2	Weight	Box	Compatibility
mm	mm	mm	mm	mm	mm	mm	kg	Pcs	SDR
32	25	45	37	85	48	33	0,067	75	9..11

001 117 2080 0034 32x20 EF Reducer

d1	d2	D1	D2	Z	le1	le2	Weight	Box	Compatibility
mm	mm	mm	mm	mm	mm	mm	kg	Pcs	SDR
32	20	44	32	85	48	32	0,062	75	9..11

001 117 2080 0041 40x32 EF Reducer

d1	d2	D1	D2	Z	le1	le2	Weight	Box	Compatibility
mm	mm	mm	mm	mm	mm	mm	kg	Pcs	SDR
40	32	53	45,5	91	46	41	0,084	80	9..11

001 117 2080 0051 50x40 EF Reducer

d1	d2	D1	D2	Z	le1	le2	Weight	Box	Compatibility
mm	mm	mm	mm	mm	mm	mm	kg	Pcs	SDR
50	40	62	53	124	61	57	0,130	80	9..11

001 117 2080 0052 50x32 EF Reducer

d1	d2	D1	D2	Z	le1	le2	Weight	Box	Compatibility
mm	mm	mm	mm	mm	mm	mm	kg	Pcs	SDR
50	32	63	45	126	67	53	0,134	80	9..11

001 117 2080 0064 63x50 EF Reducer

d1	d2	D1	D2	Z	le1	le2	Weight	Box	Compatibility
mm	mm	mm	mm	mm	mm	mm	kg	Pcs	SDR
63	50	81	68	117	62	49	0,212	60	9..11

001 117 2080 0065 63x40 EF Reducer

d1	d2	D1	D2	Z	le1	le2	Weight	Box	Compatibility
mm	mm	mm	mm	mm	mm	mm	kg	Pcs	SDR
63	40	80	54	102	52	45	0,168	60	9..11

001 117 2080 0066 63x32 EF Reducer

d1	d2	D1	D2	Z	le1	le2	Weight	Box	Compatibility
mm	mm	mm	mm	mm	mm	mm	kg	Pcs	SDR
63	32	80	45	102	52	42	0,162	60	9..11

001 117 2080 0076 75x63 EF Reducer

d1	d2	D1	D2	Z	le1	le2	Weight	Box	Compatibility
mm	mm	mm	mm	mm	mm	mm	kg	Pcs	SDR
75	63	97	81	125	62	56	0,314	24	11..17

001 117 2080 0092 90x63 EF Reducer

d1	d2	D1	D2	Z	le1	le2	Weight	Box	Compatibility
mm	mm	mm	mm	mm	mm	mm	kg	Pcs	SDR
90	63	114	80	124	61	52	0,374	35	11..17

001 117 2080 0111 110x90 EF Reducer

d1	d2	D1	D2	Z	le1	le2	Weight	Box	Compatibility
mm	mm	mm	mm	mm	mm	mm	kg	Pcs	SDR
110	90	140	116	160	83	69	0,780	20	11..17

001 117 2080 0113 110x63 EF Reducer

d1	d2	D1	D2	Z	le1	le2	Weight	Box	Compatibility
mm	mm	mm	mm	mm	mm	mm	kg	Pcs	SDR
110	63	139	83	157	71	56	0,642	24	11..17

001 117 2080 0127 125x90 EF Reducer

d1	d2	D1	D2	Z	le1	le2	Weight	Box	Compatibility
mm	mm	mm	mm	mm	mm	mm	kg	Pcs	SDR
125	90	155	116	160	85	67	0,912	12	11..17

001 117 2080 0129 125x63 EF Reducer

d1	d2	D1	D2	Z	le1	le2	Weight	Box	Compatibility
mm	mm	mm	mm	mm	mm	mm	kg	Pcs	SDR
125	63	156	83	156	75	67	0,796	12	11..17

001 117 2080 0163 160x110 EF Reducer

d1	d2	D1	D2	Z	le1	le2	Weight	Box	Compatibility
mm	mm	mm	mm	mm	mm	mm	kg	Pcs	SDR
160	110	199	141	191	96	81	1,812	6	11..17

001 117 2080 0164 160x90 EF Reducer

d1	d2	D1	D2	Z	le1	le2	Weight	Box	Compatibility
mm	mm	mm	mm	mm	mm	mm	kg	Pcs	SDR
160	90	199	118	195	99	75	1,768	6	11..17

001 117 2080 0183 180x125 EF Reducer

d1	d2	D1	D2	Z	le1	le2	Weight	Box	Compatibility
mm	mm	mm	mm	mm	mm	mm	kg	Pcs	SDR
180	125	220	157	224	116	91	2,256	4	11..17

About The Brand

NTG

NTG Plastik is recognized for its high technology and flawless leakproof standards in the production of polyethylene pipe fittings. With Ansu Altyapi assurance, we rapidly dispatch all NTG electrofusion fittings, elbows, tees, and valves needed in your projects to your construction sites from our high stock reserves.
